🔌 Lenovo X1 Carbon Gen 8 Screen – Number of Pins & Technical Detail | Valtech Computers Nairobi

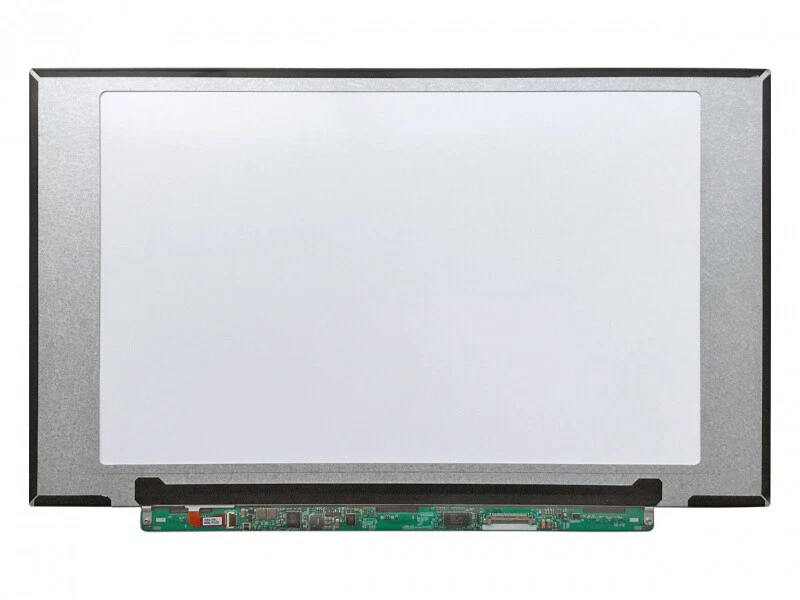

Lenovo X1 Carbon Gen 8 Screen
The Lenovo X1 Carbon Gen 8 screen typically uses a 30-pin eDP (Embedded DisplayPort) connector, which is standard for ultra-thin business laptops in the ThinkPad X1 series.
🔹 Key Display Connection Details
- Connector Type: eDP (Embedded DisplayPort)
- Number of Pins: 30-pin
- Cable Position: Internal display flex cable connection
- Compatibility: Lenovo ThinkPad X1 Carbon Gen 8
- Signal Type: Digital high-speed video transmission
🔹 What the 30-Pin Means
The 30-pin eDP interface is responsible for:
- Sending high-resolution display signals from motherboard to screen
- Supporting Full HD and higher resolutions
- Ensuring stable brightness and color accuracy
- Allowing thin bezel ultra-light laptop design
🔹 Important Replacement Note
When replacing the screen:
- Always match 30-pin eDP type (not 40-pin or LVDS)
- Ensure correct screen size (14-inch) and model compatibility
- Incorrect pin type can cause no display or black screen issues
