Product details
BUY TOSHIBA SATELLITE A660 COOLING FAN REPLACEMENT FOR SALE IN NAIROBI CBD KENYA

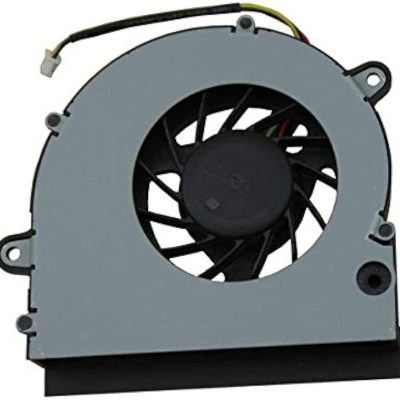

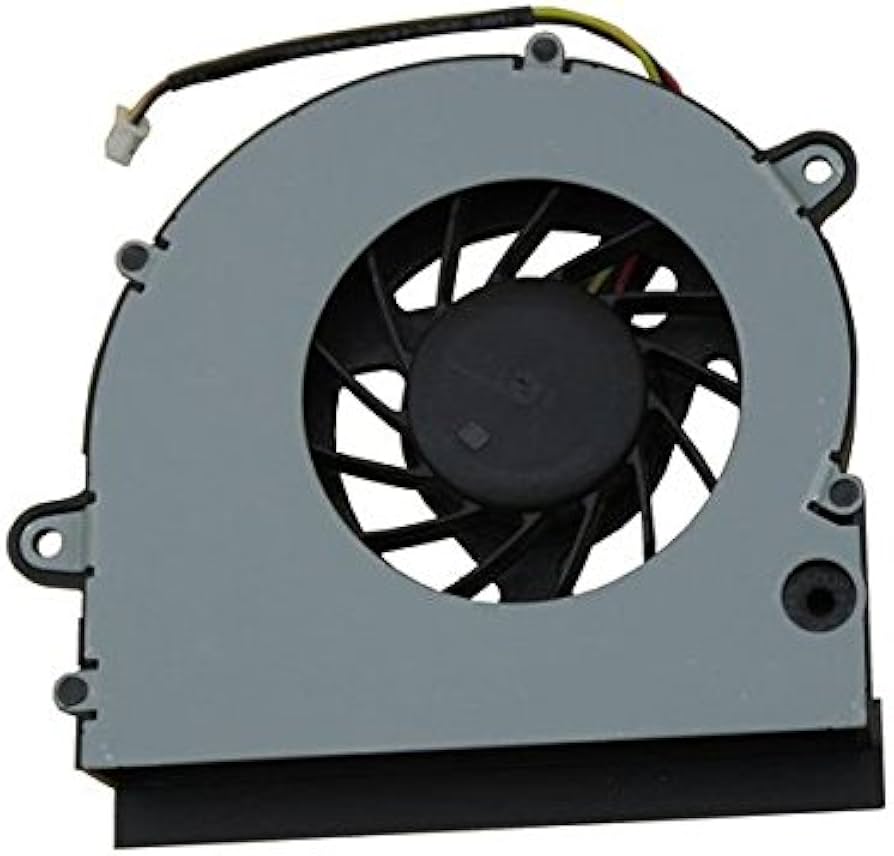

Toshiba Satellite A660 Cooling Fan – Overview
Component Name
-
CPU Cooling Fan
-
Also part of the thermal module (fan + heat sink)
Key Specifications
| Feature | Description |
|---|---|
| Fan Type | Blower-style centrifugal fan (pulls air from inside and exhausts it out the side vent) |
| Voltage | 5V DC |
| Connector | 3-pin or 4-pin connector (connects to the motherboard) |
| Material | Plastic fan housing with metal mounting plate; blades are plastic |
| Mounting | Screws into the internal metal frame or directly into the heatsink assembly |
| Location | Near the left rear corner, under the bottom case – connects to a heat pipe leading to the CPU |
| Cooling Role | Works with the copper heatsink to cool the CPU (and sometimes GPU) |
Compatible Models
This fan is compatible with:
-
Toshiba Satellite A660 / A665
-
May also fit P750 / P755, L650 / L655 depending on cooling layout
Always match the fan shape, mounting holes, and plug type
Common Part Numbers
OEM fan part numbers for A660 include:
-

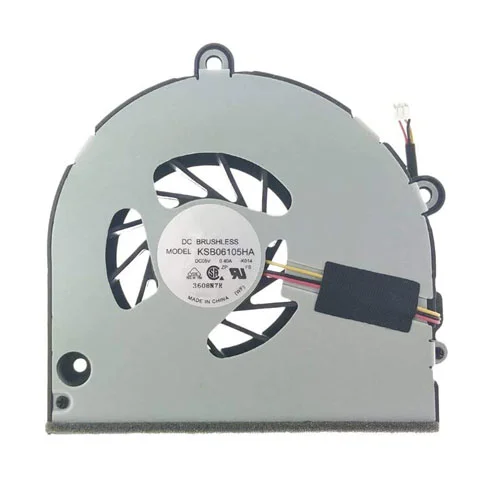

KSB06105HA (often by Delta or Sunon)
-
DFS551305MC0T
-
MG60090V1-C020-S99
-
Toshiba P/Ns like: V000220160, V000220170, AB7005HX-EB3
Sometimes sold separately or as part of a heatsink-fan assembly.
Common Issues
-
Overheating or thermal shutdowns
-
Loud fan noise / grinding
-
Fan not spinning
-
Frequent fan ramp-up even at idle (may also be thermal paste issue)
If your laptop runs hot or shuts down during heavy use, replacing the fan and cleaning the heatsink can fix it.
